YS-4BR-S SERIES
Inspection & Sorting Machine for Long Screws
 |
 |
|---|
Inspection Options
| Target Work: | M3 - M6 (M8 - M12) Shank LengthF30 - 100mm (100 - 250mm) |
|---|---|
| Upper Camera: | Head Shape |
| Lateral Camera: | Shank Length, Presence of Threading, Screw Shape, Bend of Screw |

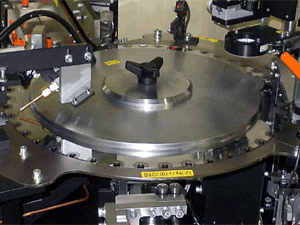

| Other Functions: | Multi-Table System (M3 - M6 or M8 - M12 Combined)@ (Domestic & International Patent) High Speed Inspection of the Bent Shank Axis Preset Counter (6 Digits) |
 |
 |
|---|---|
 |
 |
360 Lens Inspection Options
| Target Work: | M4 - M8 (M10 - M14) Shank Length: 60 - 100mm (100 - 250mm) |
|---|---|
| Upper Camera: | Head Shape & Scratch Inspection, Head Diameter |
| Lateral Camera: | Head Height (Thickness), 360 Degree Head Inspection, 360 Degree Inspection of Scratches and Nicks on the Shaft (Including the Threaded Portion) 360 Degree Inspection of the Shaft and Tip Shape |
| Laser Sensor: | Long & Short Shank Inspection |
| Other Functions: | 360 Degrees Full Scan of Tip Shape and Shaft, Preset Counter (6 Digits), Shaft Bend Inspection by Rotation Mechanism |
 |
 |
|---|---|
 |
 |
 |
 |
 |
|---|
